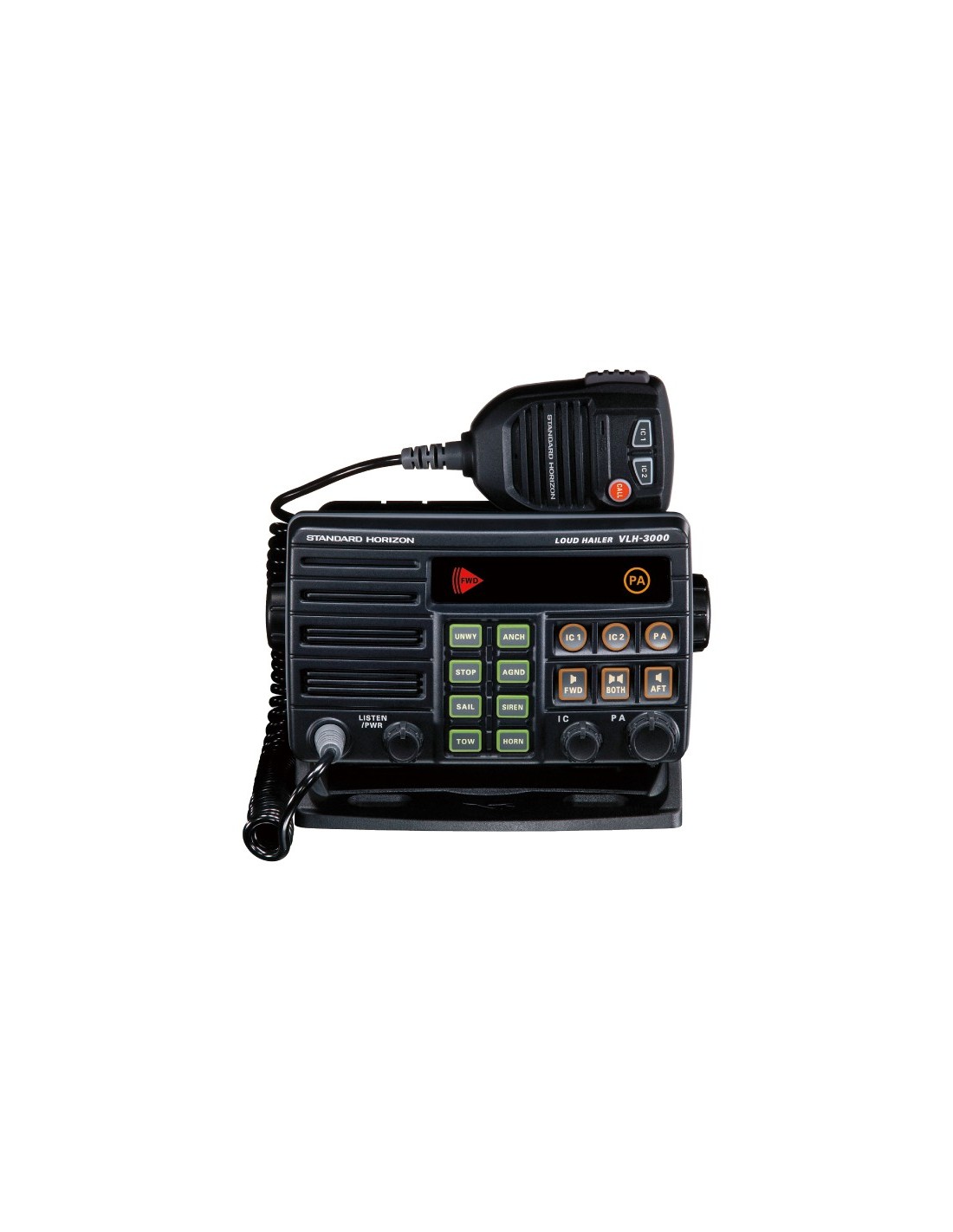

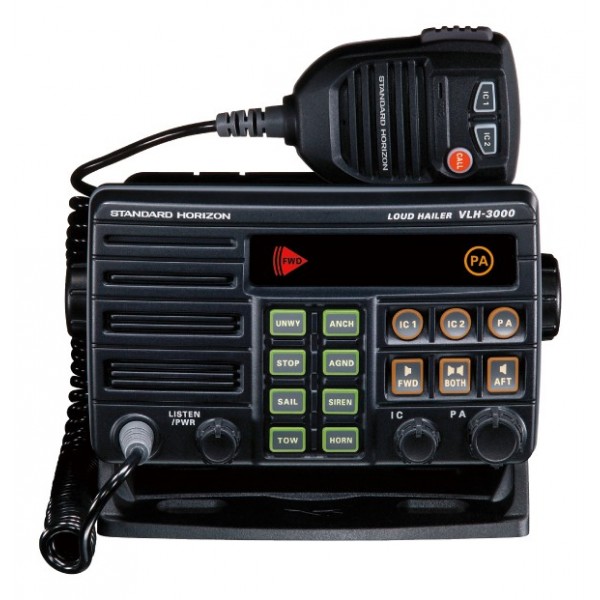

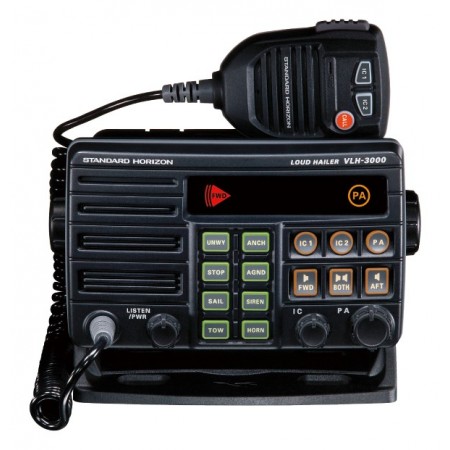

VLH-3000 E
VLH-3000 E

VLH-3000

The VLH-3000 is a dual zone loud hailer with listen back facilities

and provides a single source for all types

of audible alarms and signals

8-6000-0004
€372.00
Tax included
Ask about product
VLH-3000

VLH-3000

The VLH-3000 is a dual zone loud hailer with listen back facilities

and provides a single source for all types

of audible alarms and signals

I accept privacy policy rules



Two 30 Watt PA Outputs, One Forward One Aft

Twice the power with two 30 watt PA outputs. You can connect one
PA forward and one aft, or transmit out of both simultaneously. Four
foghorn signals can be used depending on the conditions, or use the
bells, whistles, horn or siren.

Two Intercom Connections

Two intercom connections allow you to stay connected to everyone on board.

 It allows you to toggle between IC1 and IC2.

When connected to the optional MLS-300i you now have intercom communication at it's best.

Four Fog Horns, Bells and Whistles

Be heard! Four foghorn options allow automatic foghorn operation.
Select the foghorn you need based on the navigation situation you
are in. The VLH-3000 has all the functions you need including bells,
whistles, horns, and sirens.

New Cosmetic Design for a Consistent Look with CP180 and GX3000S

The VLH-3000 is designed to keep a uniform look on your boat when used in conjunction with the CP180 and GX3000S.

Flush Mount Capability

Two mounting options are available. Bracket mount with the bracket and knobs included, or use the optional MMB-84 to flush mount in to a bulkhead.

  General



Power Supply

13.8 VDC ± 20 %

PA Output

More than 25 W (at 4 ohm 10 % distortion) x 2CH

IC Output

More than 4 W (at 4 ohm 10 % distortion) x 2CH

Listen-Back Input level

2mV

AF Output



 EXT SPK Output

More than 4 W (at 4 ohm 10 % distortion)

 INT SPK Output

More than 2 W (at 8 ohm 10 % distortion)

 Mic Sensitivity

10mV

Drain current

8 A (MAX) at PA x 2CH max AF output (4 ohms)

Idle current

300mA

Operating Temperature

 -4° F to +140° F

Storage Temperature

 -22° F to +158° F

Water Integerity

IPX7 ( 1M for 30 min) for the front panel

Dimensions

110H x 180W x 140D mm

Weight

1.35Kg

Microphone Impedance

 2 kΩ

Microphone Sensitivity

10mV

Speaker Impedance

Internal Speaker

8 Ω

External Speaker

4 Ω

Intercom Speaker

4 Ω

PA Horn

4 Ω

Maximum Output Power



Internal Speaker

2.0 Watts (@8 Ω, 10 % distortion)

External Speaker

4.0 Watts (@4 Ω, 10 % distortion)

Intercom Speaker

4.0 Watts x 2 CH (@4 Ω, 10 % distortion)

PA Horn

25 Watts x 2 CH (@4 Ω, 10 % distortion)

FogHorn Frequency

150 - 850 Hz (Adjustable, 50 Hz multiple)

For price inquires and details concerning all of our products please call us on (+30) 210 45 14 631 and (+30) 210 42 86 121. Our Call center is ready to take you call.
